Please send RFQ , we will respond immediately.

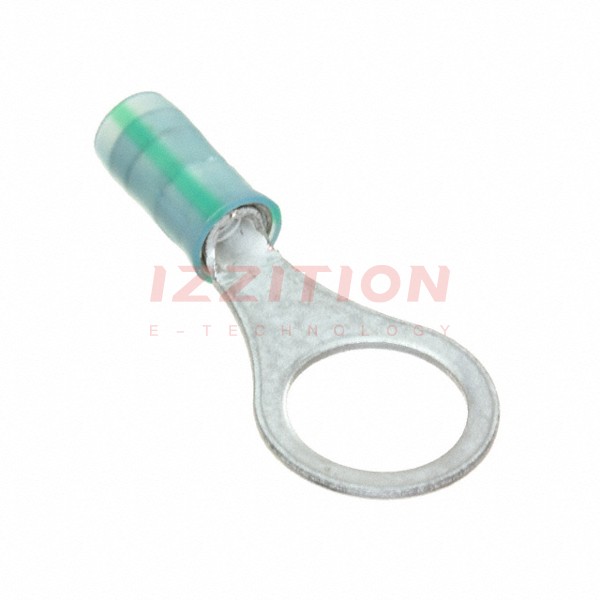

| Part Number | 2-320564-2 | 2-320574-2 | 2-320564-3 | 2-320567-2 | 2-320568-2 | 2-320561-2 | 2-320563-2 | 2-320564-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 3/8 Stud | 10 Stud | 3/8 Stud | 6 Stud | 8 Stud | 6 Stud | 1/4 Stud | 3/8 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.040" (1.02mm) | 0.040" (1.02mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.531" (13.49mm) | 0.343" (8.71mm) | 0.531" (13.49mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.250" (6.35mm) | 0.469" (11.91mm) | 0.531" (13.49mm) |
| Length - Overall | 1.280" (32.51mm) | 0.859" (21.82mm) | 1.218" (30.94mm) | 1.083" (27.51mm) | 1.148" (29.16mm) | 0.703" (17.86mm) | 1.078" (27.38mm) | 1.280" (32.51mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14 AWG | 14-16 AWG | 14-16 AWG | 10-12 AWG | 12 AWG | 14-16 AWG | 14-16 AWG | 16 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Insulation Restriction, Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Insulation Restriction, Serrated Termination | Serrated Termination | Serrated Termination | Insulation Restriction, Serrated Termination |
| Color | Blue, Green Stripe | Blue | Blue | Yellow | Yellow, Yellow Stripe | Blue | Blue | Blue, Blue Stripe |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
