Please send RFQ , we will respond immediately.

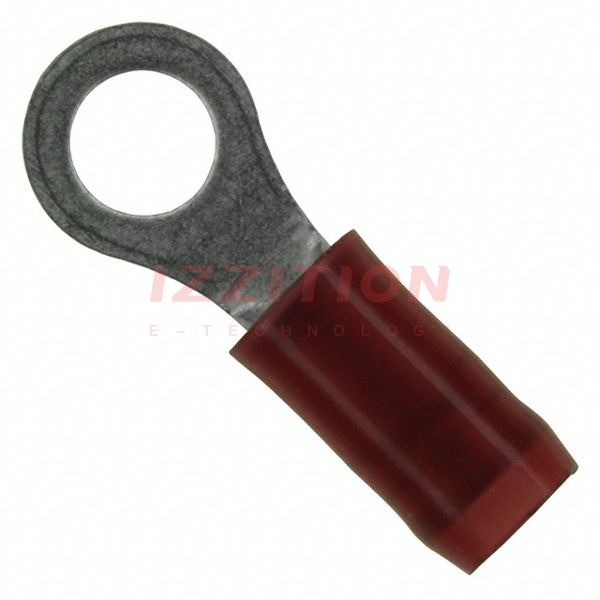

| Part Number | 2-320554-1 | 2-320564-1 | 2-320552-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | 3/8 Stud | 10 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.281" (7.14mm) | 0.531" (13.49mm) | 0.281" (7.14mm) |
| Length - Overall | 0.797" (20.24mm) | 1.280" (32.51mm) | 0.797" (20.24mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Insulation Restriction, Serrated Termination | Serrated Termination |
| Color | Red | Blue, Blue Stripe | Red |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin |
