Please send RFQ , we will respond immediately.

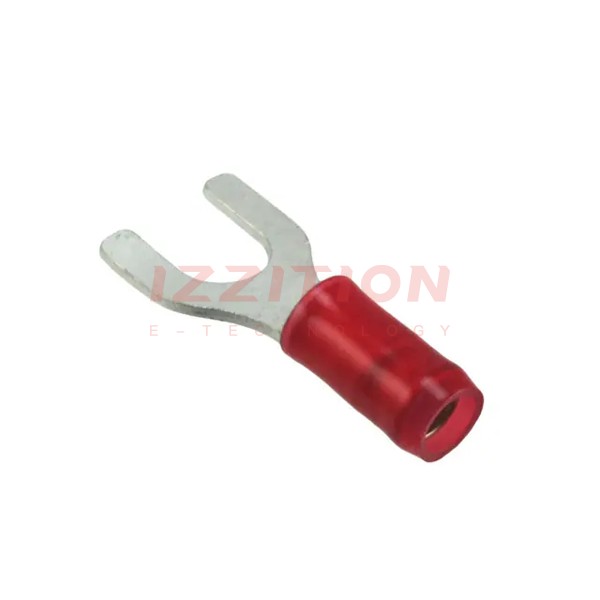

| Part Number | 2-32051-1 | 2-32053-1 | 2-32054-1 | 2-32056-1 | 2-32059-1 | 2-32050-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Stud/Tab Size | 10 Stud | 8 Stud | 10 Stud | 8 Stud | 8 Stud | 8 Stud |
| Width - Outer Edges | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Length - Overall | 0.908" (23.06mm) | 0.908" (23.06mm) | 0.908" (23.06mm) | 0.908" (23.06mm) | 0.908" (23.06mm) | 0.908" (23.06mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 16-22 AWG | 14-16 AWG | 14-16 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Red | Red | Blue | Blue | Red |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper |
