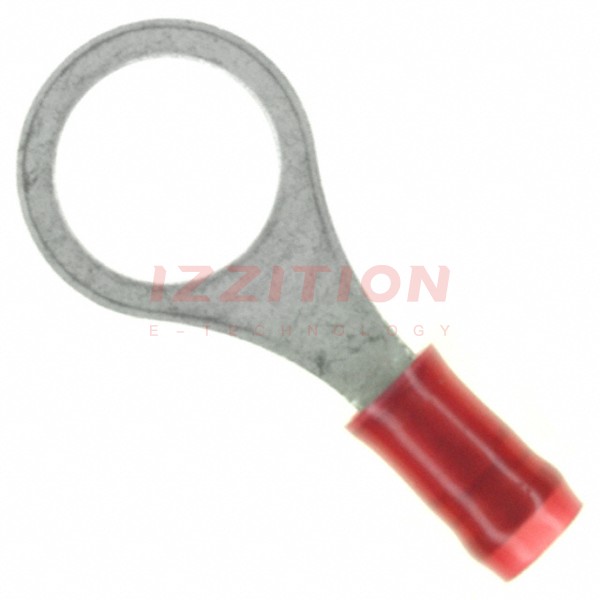

| Part Number | 2-31897-2 | 2-31807-2 | 2-31894-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 3/8 Stud | 10 Stud | 1/4 Stud |
| Thickness | 0.031" (0.79mm) | 0.048" (1.22mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.531" (13.49mm) | 0.406" (10.31mm) | 0.469" (11.91mm) |
| Length - Overall | 1.218" (30.94mm) | 0.949" (24.10mm) | 1.078" (27.38mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 8 AWG | 16-22 AWG |
| Insulation | Insulated | Non-Insulated | Insulated |
| Features | Serrated Termination | Brazed Seam, Serrated Termination | Serrated Termination |
| Color | Red | - | Red |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin |
