2-2842250-0
  • Share:

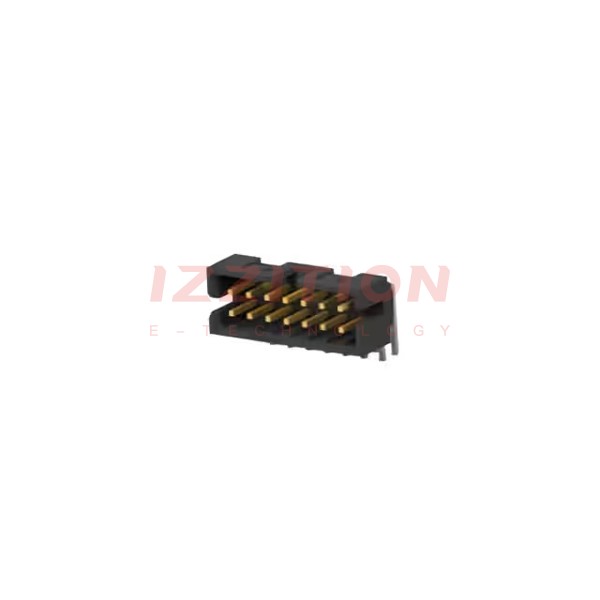

TE Connectivity AMP Connectors 2-2842250-0

Manufacturer No:
2-2842250-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
2-2842250-0 Datasheet
ECAD Model:
-
Description:
20P, AMPMODU 2MM, DOUBLE ROW SHR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.141" (3.60mm)
Contact Length - Post:0.098" (2.50mm)
Overall Contact Length:-
Insulation Height:0.248" (6.30mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-40°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2A
Voltage Rating:125VAC/DC
0 Remaining View Similar

In Stock

$4.21
236

Please send RFQ , we will respond immediately.
