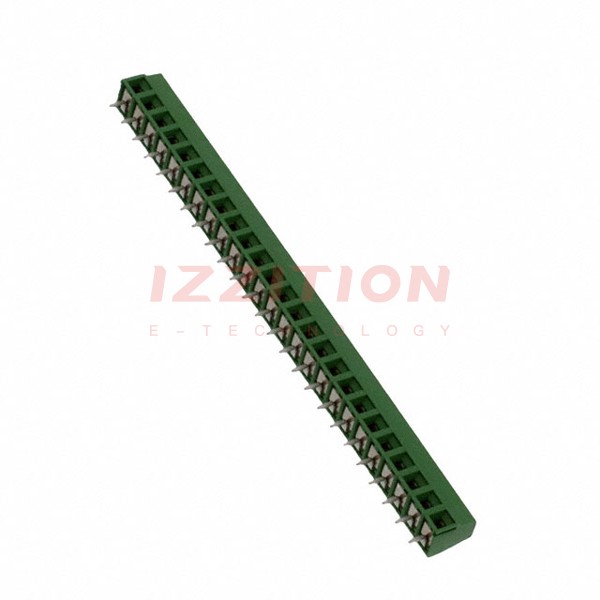

| Part Number | 2-282837-5 | 2-282837-1 | 2-282837-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 |
| Positions Per Level | 25 | 21 | 24 |
| Pitch | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Current | 13.5 A | 13.5 A | 13.5 A |
| Voltage | 300 V | 300 V | 300 V |
| Wire Gauge | 16-28 AWG | 16-28 AWG | 16-28 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Features | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) |
| Color | Green | Green | Green |
