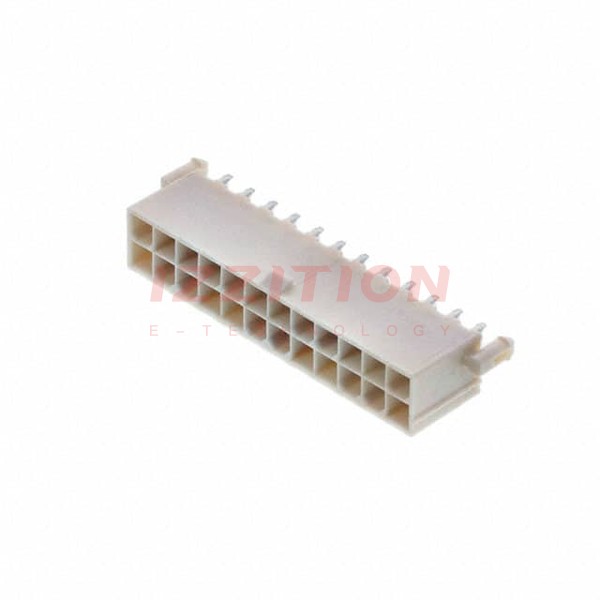

TE Connectivity AMP Connectors 2-2825274-4

Manufacturer No:
2-2825274-4
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
2-2825274-4 Datasheet
ECAD Model:
-
Description:
24P VAL-U-LOK HCS VRTHDR W/PGS G
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:24
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.504" (12.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Board Lock, Glow Wire Compliant
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):13A
Voltage Rating:600V
0 Remaining View Similar

In Stock

$2.63
263

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2-2825274-4 2-2825272-4
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active
Connector Type Header Header
Contact Type Male Pin Male Pin
Pitch - Mating 0.165" (4.20mm) 0.165" (4.20mm)
Number of Positions 24 24
Number of Rows 2 2
Row Spacing - Mating 0.165" (4.20mm) 0.165" (4.20mm)
Number of Positions Loaded All All
Style Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole Through Hole
Termination Solder Solder
Fastening Type Locking Ramp Locking Ramp
Contact Length - Mating - -
Contact Length - Post 0.138" (3.50mm) 0.138" (3.50mm)
Overall Contact Length - -
Insulation Height 0.504" (12.80mm) 0.504" (12.80mm)
Contact Shape Square Square
Contact Finish - Mating Tin Tin
Contact Finish Thickness - Mating - -
Contact Finish - Post Tin Tin
Contact Material Copper Alloy Copper Alloy
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon
Features Board Lock, Glow Wire Compliant Glow Wire Compliant
Operating Temperature -40°C ~ 105°C -40°C ~ 105°C
Ingress Protection - -
Material Flammability Rating UL94 V-0 UL94 V-2
Insulation Color Natural White
Current Rating (Amps) 13A 13A
Voltage Rating 600V 600V
