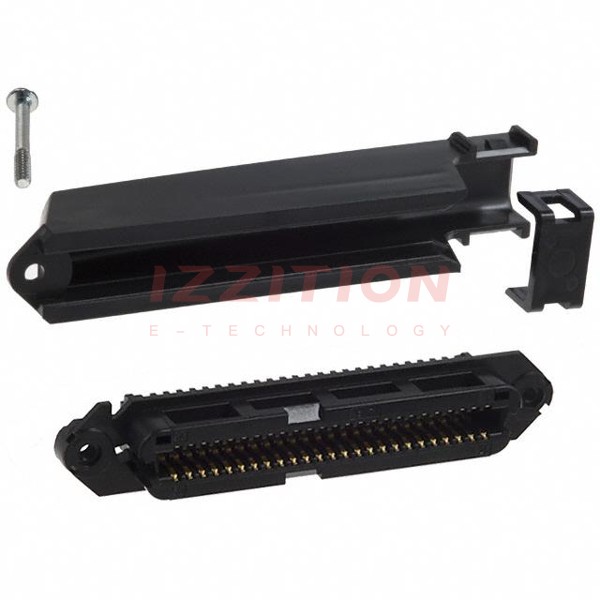

| Part Number | 2-229913-1 | 2-5229913-1 | 3-229913-1 | 2-229912-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Center Strip Contacts |
| Connector Type | Receptacle | Receptacle | Receptacle | Plug |
| Number of Positions | 50 | 50 | 50 | 50 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Termination | IDC | IDC | IDC | IDC |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) | - |
| Type | - | - | - | - |
| Features | Backshell, Cable Clamp, Dust Cover, Mounting Hardware | Backshell, Cable Clamp, Dust Cover, Mounting Hardware | Backshell, Cable Clamp, Dust Cover, Mounting Hardware | - |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
