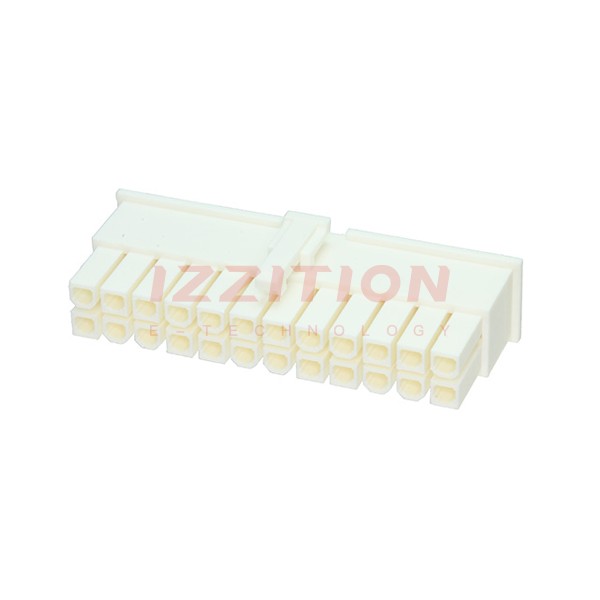

| Part Number | 2-2296205-4 | 2-2296206-4 | 2-2296207-4 | 2-2296205-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Receptacle | Plug | Plug | Receptacle |
| Contact Type | Female Socket | Male Pin | Male Pin | Female Socket |
| Number of Positions | 24 | 24 | 24 | 22 |
| Pitch | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) |
| Number of Rows | 2 | 2 | 2 | 2 |
| Row Spacing | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Locking Ramp | Locking Ramp | Latch Lock |
| Color | Natural | Natural | Natural | Natural |
| Features | Glow Wire Compliant | Glow Wire Compliant | Glow Wire Compliant | Glow Wire Compliant |
