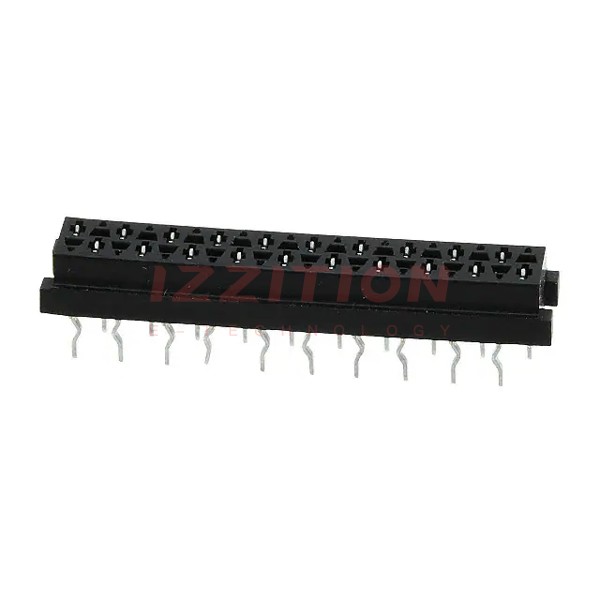

| Part Number | 2-2178710-0 | 2-2178711-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Forked | Forked |
| Style | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 20 | 20 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Through Hole | Surface Mount |
| Termination | Kinked Pin, Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) | 118.1µin (3.00µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.157" (4.00mm) | 0.209" (5.30mm) |
| Contact Length - Post | 0.122" (3.10mm) | - |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C |
| Material Flammability Rating | - | - |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | - | - |
| Current Rating (Amps) | - | - |
| Voltage Rating | 100VDC | 100VDC |
