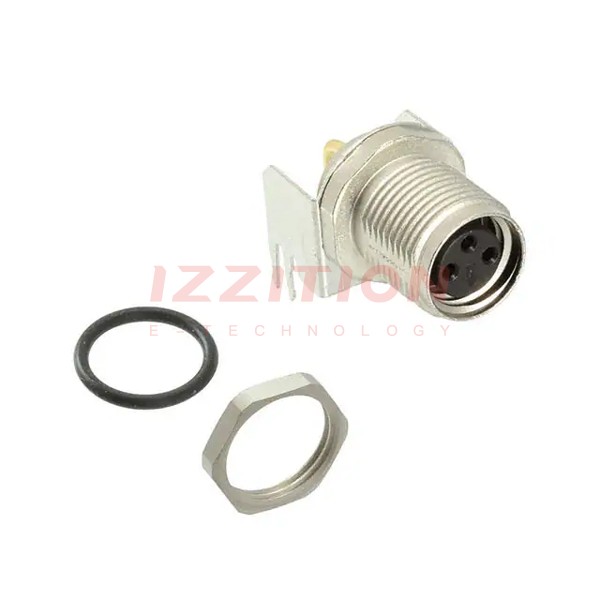

| Part Number | 2-2172091-2 | 2-2172092-2 | 2-2172093-2 | 2-2172090-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active | Obsolete |
| Connector Type | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 3 | 3 | 3 | 3 |
| Shell Size - Insert | M8-3 | M8-3 | M8-3 | M8-3 |
| Shell Size, MIL | - | - | - | - |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole | Panel Mount, Through Hole, Right Angle | Panel Mount |
| Mounting Feature | Bulkhead | Bulkhead - Front Side Nut | Bulkhead | Bulkhead - Front Side Nut |
| Termination | Solder | Solder | Solder | Wire Leads |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Orientation | - | - | - | - |
| Primary Material | Metal | Metal | Metal | Metal |
| Shell Material | Zinc Die Cast | Zinc Die Cast | Zinc Die Cast | Brass |
| Shell Finish | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Gold |
| Color | Silver | Silver | Silver | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - | - |
| Features | Board Lock | Board Guide, Board Lock | Board Lock | - |
| Shielding | Shielded | Shielded | Shielded | - |
| Current Rating (Amps) | 4A | 4A | 4A | 4A |
| Voltage Rating | 60V | 60V | 60V | 60V |
| Cable Opening | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
