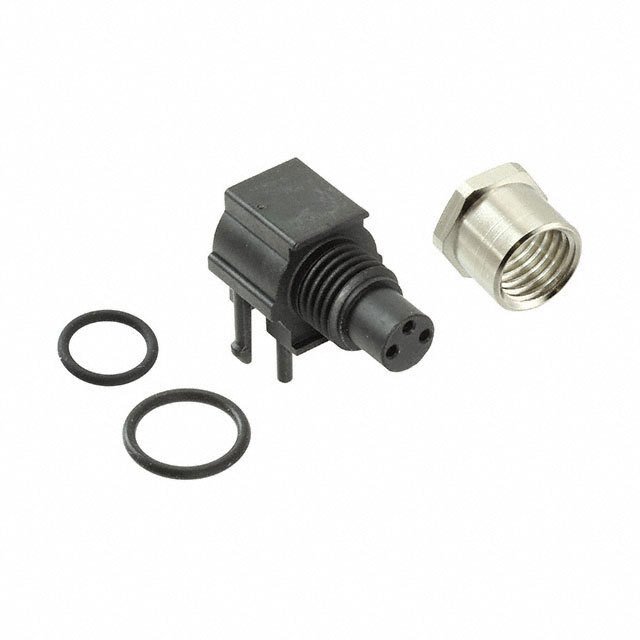

| Part Number | 2-2172068-2 | 2-2172067-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Receptacle, Female Sockets | Plug, Male Pins |
| Number of Positions | 3 | 3 |
| Shell Size - Insert | M8-3 | M8-3 |
| Shell Size, MIL | - | - |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead | Bulkhead |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Threaded |
| Orientation | - | - |
| Primary Material | Metal | - |
| Shell Material | Brass | - |
| Shell Finish | Nickel | - |
| Contact Finish - Mating | Gold | Gold |
| Color | Silver | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - |
| Features | Board Guide, Board Lock | Board Guide, Board Lock |
| Shielding | - | - |
| Current Rating (Amps) | 4A | 4A |
| Voltage Rating | 60VAC/DC | 60V |
| Cable Opening | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
