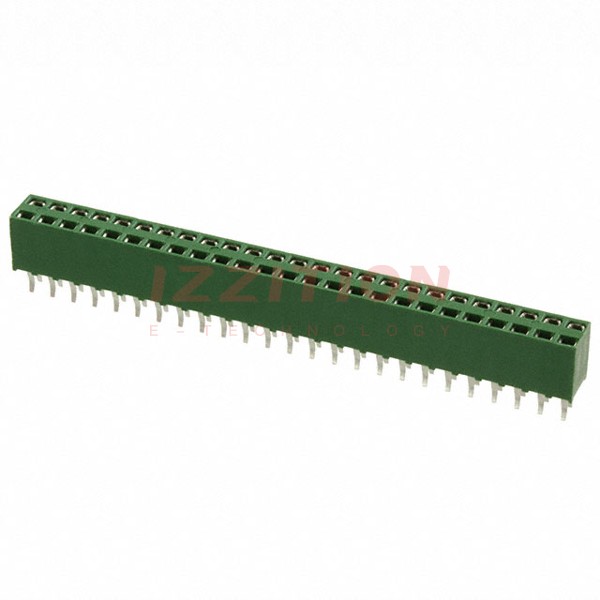

| Part Number | 2-215307-5 | 2-215309-5 | 2-215307-0 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket |
| Style | Board to Board | Board to Board | Board to Board |
| Number of Positions | 50 | 50 | 40 |
| Number of Positions Loaded | All | All | All |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Kinked Pin, Solder | Kinked Pin, Solder | Kinked Pin, Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) | 31.5µin (0.80µm) | 31.5µin (0.80µm) |
| Insulation Color | Green | Green | Green |
| Insulation Height | 0.276" (7.00mm) | 0.335" (8.51mm) | 0.276" (7.00mm) |
| Contact Length - Post | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.122" (3.10mm) |
| Operating Temperature | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin | Tin |
| Mated Stacking Heights | - | - | - |
| Ingress Protection | - | - | - |
| Features | - | - | - |
| Current Rating (Amps) | - | - | - |
| Voltage Rating | - | - | - |
