2-2013325-1
  • Share:

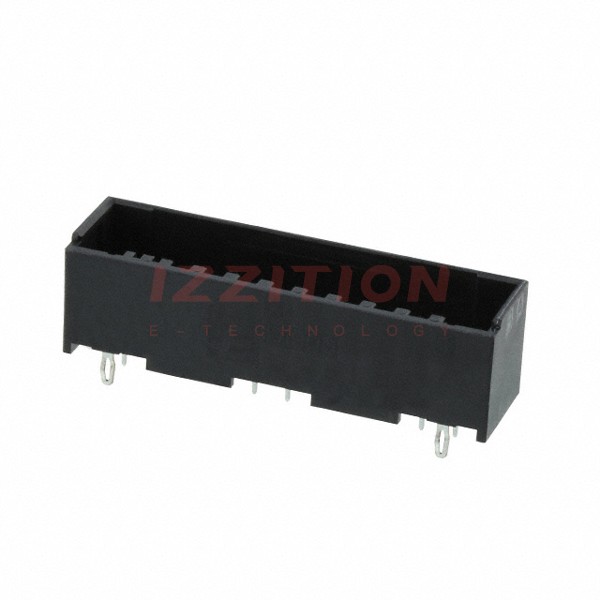

TE Connectivity AMP Connectors 2-2013325-1

Manufacturer No:
2-2013325-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-2013325-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 22POS 3.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.138" (3.50mm)
Number of Positions:22
Number of Rows:2
Row Spacing - Mating:0.130" (3.30mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.490" (12.44mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Lock
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):4A
Voltage Rating:150V
0 Remaining View Similar

In Stock

$9.72
21

Please send RFQ , we will respond immediately.
