2-1986723-2
  • Share:

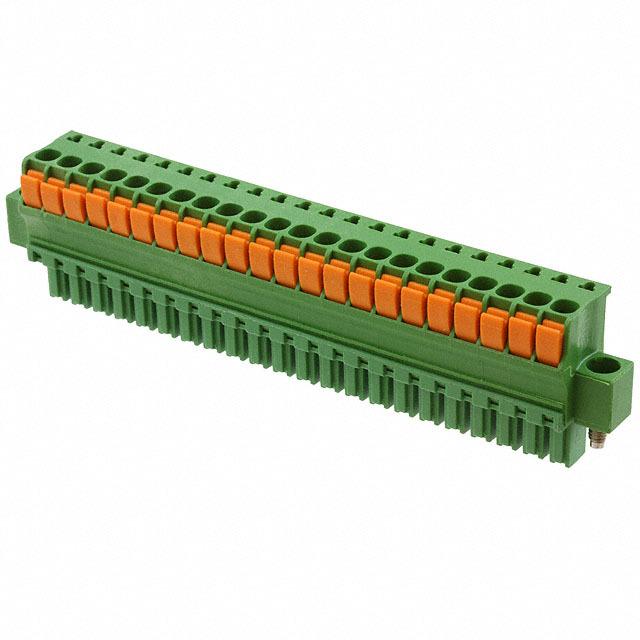

TE Connectivity AMP Connectors 2-1986723-2

Manufacturer No:
2-1986723-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-1986723-2 Datasheet
ECAD Model:
-
Description:
TERM BLOCK PLUG 22POS STR 3.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Plug, Female Sockets
Number of Positions:22
Positions Per Level:22
Number of Levels:1
Pitch:0.138" (3.50mm)
Header Orientation:-
Plug Wire Entry:180°
Termination Style:Screwless - Leg Spring, Push-In Spring
Mounting Type:Free Hanging (In-Line)
Current - IEC:-
Voltage - IEC:-
Current - UL:9 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:14-30 AWG
Wire Gauge or Range - mm²:0.05-2mm²
Color:Green
Operating Temperature:-40°C ~ 110°C
Contact Mating Finish:Tin
Features:Mating Flange
0 Remaining View Similar

In Stock

$33.85
5

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2-1986723-2 2-1986723-3   2-1986724-2   2-1986725-2   2-1986726-2   2-1986720-2   2-1986722-2   2-1986723-0   2-1986723-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Obsolete Obsolete Obsolete Active Active Active Active
Type Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets
Number of Positions 22 23 22 22 22 22 22 20 21
Positions Per Level 22 23 22 22 22 22 22 20 21
Number of Levels 1 1 1 1 1 1 1 1 1
Pitch 0.138" (3.50mm) 0.138" (3.50mm) 0.150" (3.81mm) 0.138" (3.50mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.138" (3.50mm) 0.138" (3.50mm)
Header Orientation - - - - - - - - -
Plug Wire Entry 180° 180° 180° 180° 180° 180° 180° 180° 180°
Termination Style Screwless - Leg Spring, Push-In Spring Screwless - Leg Spring, Push-In Spring Screwless - Leg Spring, Push-In Spring Screwless - Leg Spring, Push-In Spring Screwless - Leg Spring, Push-In Spring Screwless - Leg Spring, Push-In Spring Screwless - Leg Spring, Push-In Spring Screwless - Leg Spring, Push-In Spring Screwless - Leg Spring, Push-In Spring
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Current - IEC - - - - - - - - -
Voltage - IEC - - - - - - - - -
Current - UL 9 A 9 A 9 A 9 A 9 A 9 A 9 A 9 A 9 A
Voltage - UL 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V
Wire Gauge or Range - AWG 14-30 AWG 14-30 AWG 14-30 AWG 14-30 AWG 14-30 AWG 14-30 AWG 14-30 AWG 14-30 AWG 14-30 AWG
Wire Gauge or Range - mm² 0.05-2mm² 0.05-2mm² 0.05-2mm² 0.05-2mm² 0.05-2mm² 0.05-2mm² 0.05-2mm² 0.05-2mm² 0.05-2mm²
Color Green Green Green Green Green Green Green Green Green
Operating Temperature -40°C ~ 110°C -40°C ~ 110°C -40°C ~ 110°C -40°C ~ 110°C -40°C ~ 110°C -40°C ~ 110°C -40°C ~ 110°C -40°C ~ 110°C -40°C ~ 110°C
Contact Mating Finish Tin Tin Tin Tin Tin Tin Tin Tin Tin
Features Mating Flange Mating Flange Mating Flange Mating Flange Mating Flange Side Stacking Side Stacking Mating Flange Mating Flange
