Please send RFQ , we will respond immediately.

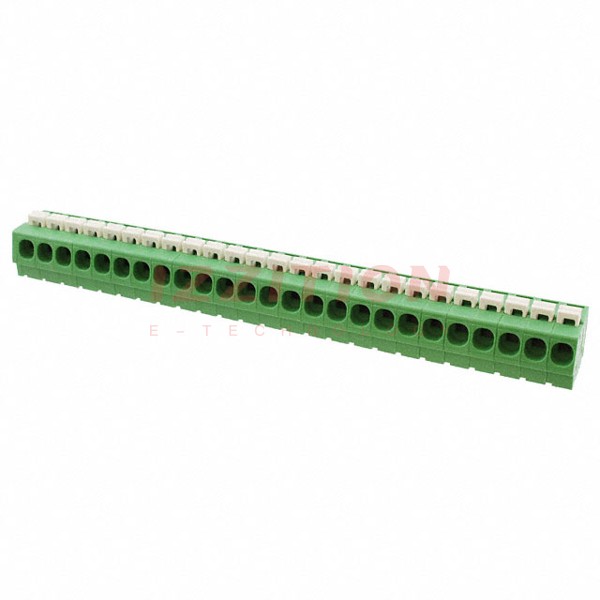

| Part Number | 2-1986712-5 | 2-1986711-5 | 2-1986712-0 | 2-1986712-1 | 2-1986712-2 | 2-1986712-3 | 2-1986712-4 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 25 | 25 | 20 | 21 | 22 | 23 | 24 |
| Pitch | 0.200" (5.08mm) | 0.197" (5.00mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Current | 16 A | 16 A | 16 A | 16 A | 16 A | 16 A | 16 A |
| Voltage | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp |
| Features | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) |
| Color | Green | Green | Green | Green | Green | Green | Green |
