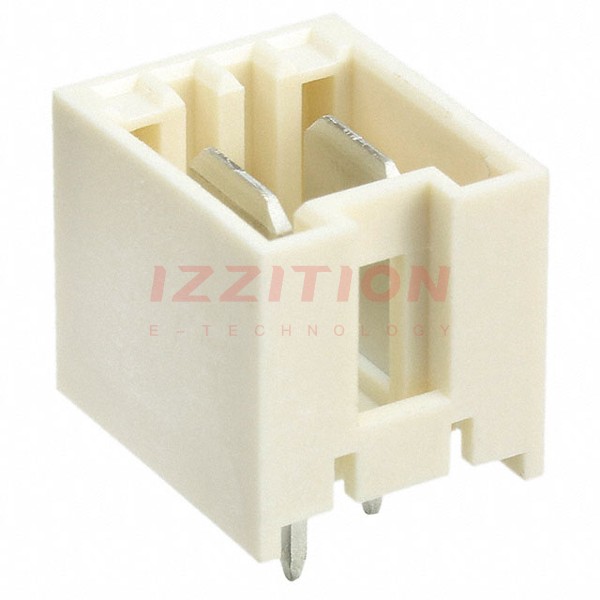

TE Connectivity AMP Connectors 2-1971845-2

Manufacturer No:
2-1971845-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-1971845-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 2POS 5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.197" (5.00mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.504" (12.80mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide, Glow Wire Compliant
Operating Temperature:-40°C ~ 120°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$0.72
352

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2-1971845-2 2-1971846-2   2-1971845-6
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active
Connector Type Header Header Header
Contact Type Tab Tab Tab
Pitch - Mating 0.197" (5.00mm) 0.197" (5.00mm) 0.197" (5.00mm)
Number of Positions 2 2 6
Number of Rows 1 1 1
Row Spacing - Mating - - -
Number of Positions Loaded All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole Through Hole Through Hole
Termination Solder Solder Solder
Fastening Type Latch Holder Latch Holder Latch Holder
Contact Length - Mating - - -
Contact Length - Post 0.138" (3.50mm) 0.138" (3.50mm) 0.138" (3.50mm)
Overall Contact Length - - -
Insulation Height 0.504" (12.80mm) 0.504" (12.80mm) 0.504" (12.80mm)
Contact Shape Rectangular Rectangular Rectangular
Contact Finish - Mating Tin Silver Tin
Contact Finish Thickness - Mating - - -
Contact Finish - Post Tin Silver Tin
Contact Material Copper Alloy Copper Alloy Copper Alloy
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Features Board Guide, Glow Wire Compliant Board Guide, Glow Wire Compliant Board Guide, Glow Wire Compliant
Operating Temperature -40°C ~ 120°C -40°C ~ 120°C -40°C ~ 120°C
Ingress Protection - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Natural Natural Natural
Current Rating (Amps) - 20A -
Voltage Rating 250VAC 250VAC 250VAC
