2-1971798-3
  • Share:

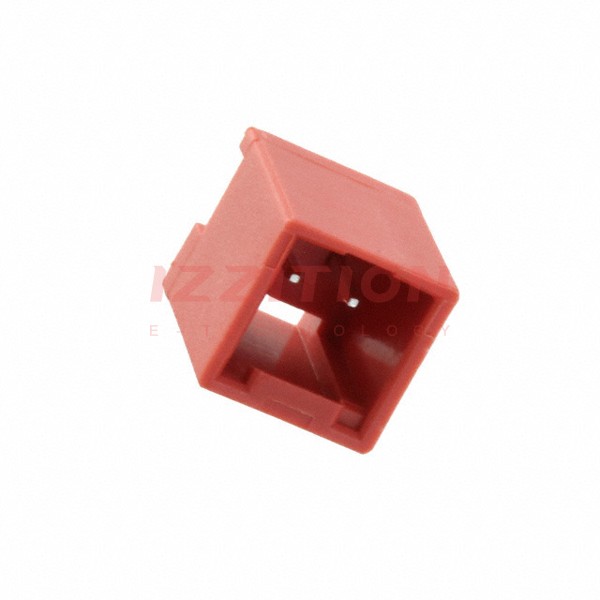

TE Connectivity AMP Connectors 2-1971798-3

Manufacturer No:
2-1971798-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-1971798-3 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 2POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.346" (8.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Board Guide
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Red
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:50V
0 Remaining View Similar

In Stock

$0.26
2,341

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2-1971798-3 2-1971798-4   2-1971798-2
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active
Connector Type Header Header Header
Contact Type Male Pin Male Pin Male Pin
Pitch - Mating 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm)
Number of Positions 2 2 2
Number of Rows 1 1 1
Row Spacing - Mating - - -
Number of Positions Loaded All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole Through Hole Through Hole
Termination Kinked Pin, Solder Kinked Pin, Solder Kinked Pin, Solder
Fastening Type Latch Holder Latch Holder Latch Holder
Contact Length - Mating - - -
Contact Length - Post - - -
Overall Contact Length - - -
Insulation Height 0.346" (8.80mm) 0.346" (8.80mm) 0.346" (8.80mm)
Contact Shape Square Square Square
Contact Finish - Mating Tin Tin Tin
Contact Finish Thickness - Mating - - -
Contact Finish - Post Tin Tin Tin
Contact Material Copper Alloy Copper Alloy Copper Alloy
Insulation Material Thermoplastic Thermoplastic Thermoplastic
Features Board Guide Board Guide Board Guide
Operating Temperature -30°C ~ 105°C -30°C ~ 105°C -30°C ~ 105°C
Ingress Protection - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Red Yellow Blue
Current Rating (Amps) Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge
Voltage Rating 50V 50V 50V
