2-1939995-0
  • Share:

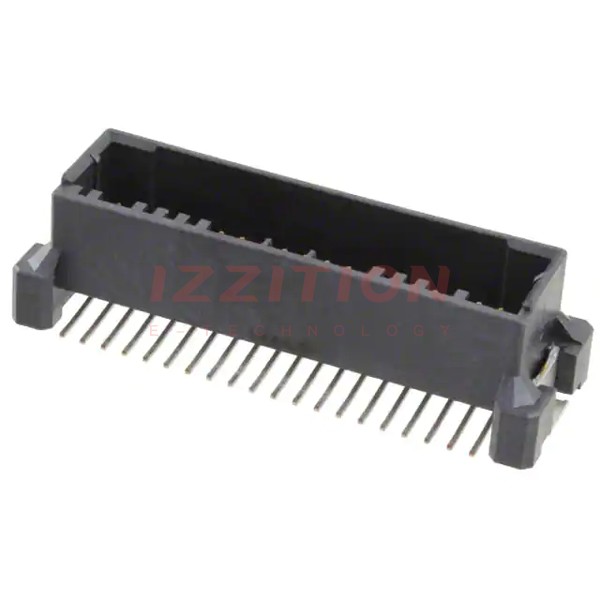

TE Connectivity AMP Connectors 2-1939995-0

Manufacturer No:
2-1939995-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-1939995-0 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 40POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.130" (3.30mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.528" (13.40mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide, Solder Retention
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:125V
0 Remaining View Similar

In Stock

$8.72
71

Please send RFQ , we will respond immediately.
