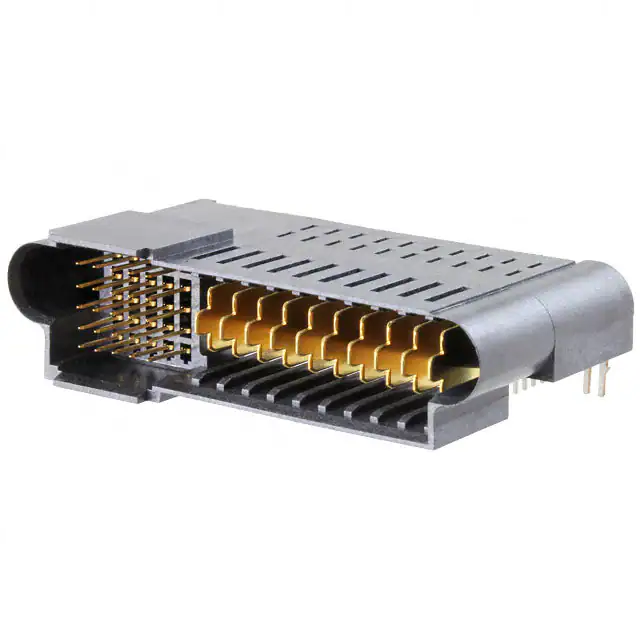

| Part Number | 2-1926730-5 | 2-1926739-5 | 2-1926720-5 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Usage | - | - | - |
| Connector Type | Plug, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets | Header, Male Pins and Blades |
| Connector Style | - | - | - |
| Number of Positions | 35 | 35 | 41 |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 5 | - | - |
| Number of Columns | - | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 25 Signal, 10 Power | 25 Signal, 10 Power | 25 Signal, 16 Power |
| Features | Board Guide, Mating Guide | Guide Pin | Board Lock, Mating Guide |
| Contact Finish | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness | - | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black |
