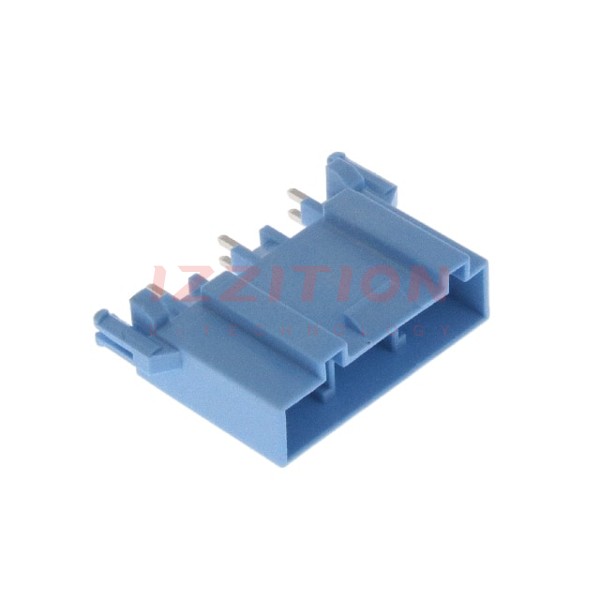

TE Connectivity AMP Connectors 2-1903415-1

Manufacturer No:
2-1903415-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-1903415-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 3POS 9MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.354" (9.00mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:-
Insulation Height:0.724" (18.39mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Lock
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Blue
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:600VAC
0 Remaining View Similar

In Stock

$2.53
81

Please send RFQ , we will respond immediately.
