2-1827393-3
  • Share:

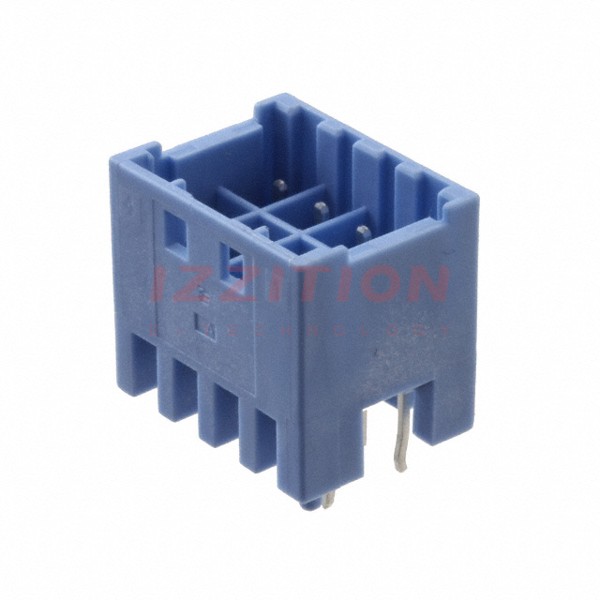

TE Connectivity AMP Connectors 2-1827393-3

Manufacturer No:
2-1827393-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
2-1827393-3 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 8POS 3.3MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.130" (3.30mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.205" (5.20mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.528" (13.40mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Guide
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Blue
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$1.50
520

Please send RFQ , we will respond immediately.
