2-1825396-0
  • Share:

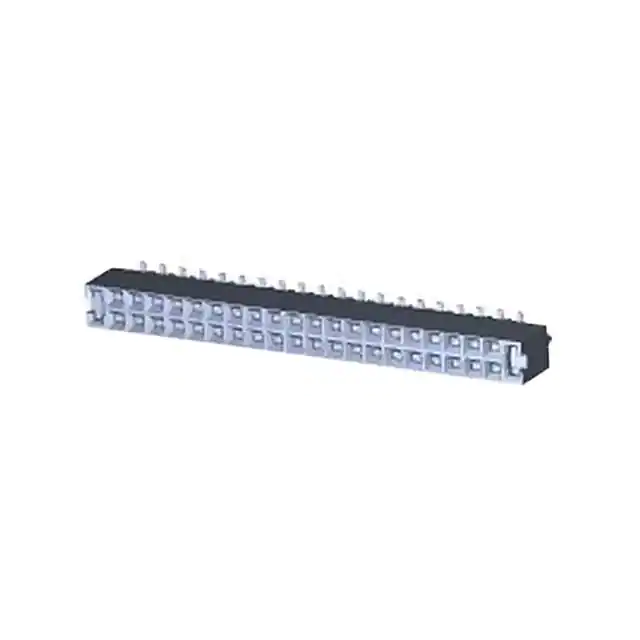

TE Connectivity AMP Connectors 2-1825396-0

Manufacturer No:
2-1825396-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-1825396-0 Datasheet
ECAD Model:
-
Description:
CONN RCPT 40POS 0.1 GOLD SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle, Bottom or Top Entry
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:40
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.265" (6.73mm)
Contact Length - Post:-
Operating Temperature:-
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Lock, Solder Retention
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$6.66
122

Please send RFQ , we will respond immediately.
