2-178238-2
  • Share:

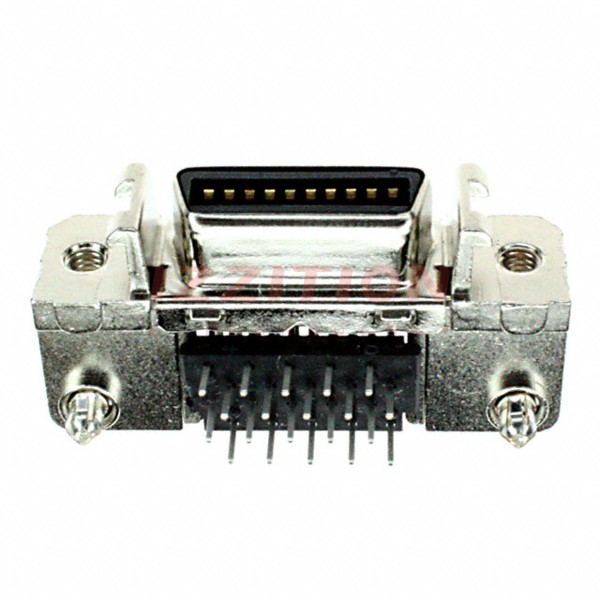

TE Connectivity AMP Connectors 2-178238-2

Manufacturer No:
2-178238-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-178238-2 Datasheet
ECAD Model:
-
Description:
CONN RCPT 20POS R/A SOLDER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Style:Outer Shroud Contacts
Connector Type:Receptacle
Number of Positions:20
Number of Rows:2
Mounting Type:Panel Mount, Through Hole, Right Angle
Termination:Solder
Flange Feature:Housing/Shell (M2.6)
Type:-
Features:Board Lock
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
0 Remaining View Similar

In Stock

-
154

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2-178238-2 2-5178238-2   2-178238-5   2-178238-4   2-178238-7   2-178238-8   2-178238-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Obsolete Active Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Style Outer Shroud Contacts Outer Shroud Contacts Outer Shroud Contacts Outer Shroud Contacts Outer Shroud Contacts Outer Shroud Contacts Outer Shroud Contacts
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle
Number of Positions 20 20 36 26 50 68 14
Number of Rows 2 2 2 2 2 2 2
Mounting Type Panel Mount, Through Hole, Right Angle Panel Mount, Through Hole, Right Angle Panel Mount, Through Hole, Right Angle Panel Mount, Through Hole, Right Angle Panel Mount, Through Hole, Right Angle Panel Mount, Through Hole, Right Angle Panel Mount, Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder
Flange Feature Housing/Shell (M2.6) Housing/Shell (M2.6) Housing/Shell (M2.6) Housing/Shell (M2.6) Housing/Shell (M2.6) Housing/Shell (M2.6) Housing/Shell (M2.6)
Type - - - - - - -
Features Board Lock Board Lock Board Lock Board Lock Board Lock Board Lock Board Lock
Contact Finish Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
