2-1658526-9
  • Share:

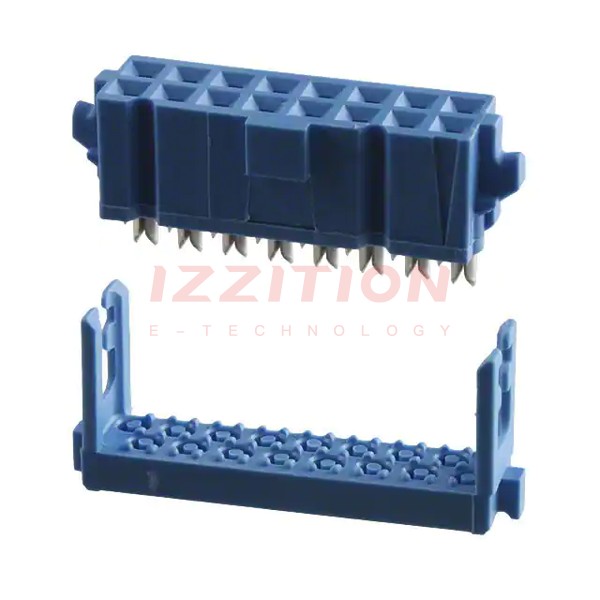

TE Connectivity AMP Connectors 2-1658526-9

Manufacturer No:
2-1658526-9
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-1658526-9 Datasheet
ECAD Model:
-
Description:
CONN RCPT 16P IDC 28-30AWG GOLD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Number of Positions:16
Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Mounting Type:Free Hanging (In-Line)
Fastening Type:-
Cable Termination:IDC
Wire Type:Ribbon Cable
Wire Gauge:28-30 AWG
Features:Polarizing Key
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Color:Blue
0 Remaining View Similar

In Stock

$8.10
85

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2-1658526-9 2-1658526-0   2-1658526-1   2-1658526-3   2-1658526-4   2-1658526-5
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket
Number of Positions 16 40 40 50 50 6
Pitch 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Rows 2 2 2 2 2 2
Row Spacing 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Fastening Type - - - - - -
Cable Termination IDC IDC IDC IDC IDC IDC
Wire Type Ribbon Cable Ribbon Cable Ribbon Cable Ribbon Cable Ribbon Cable Ribbon Cable
Wire Gauge 28-30 AWG 28-30 AWG 28-30 AWG 28-30 AWG 28-30 AWG 28-30 AWG
Features Polarizing Key Polarizing Key Polarizing Key, Strain Relief Polarizing Key Polarizing Key, Strain Relief -
Contact Finish Gold Gold Gold Gold Gold Gold
Contact Finish Thickness 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
Color Blue Blue Blue Blue Blue Blue
