2-1586768-4
  • Share:

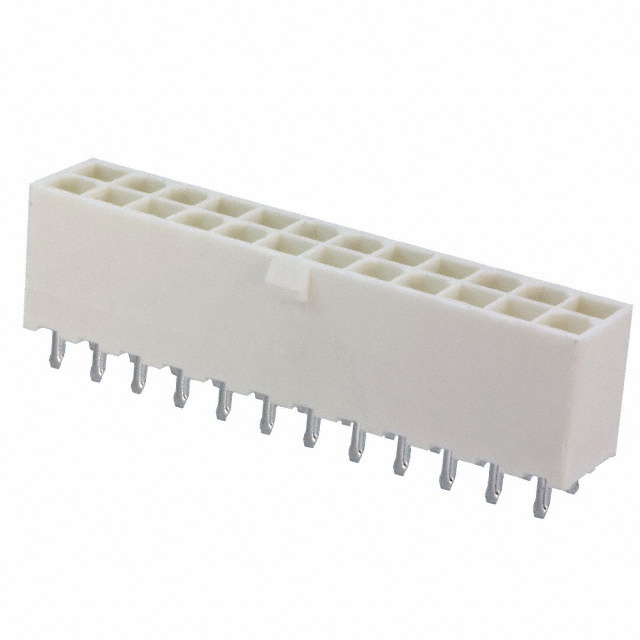

TE Connectivity AMP Connectors 2-1586768-4

Manufacturer No:
2-1586768-4
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
2-1586768-4 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 24POS 4.2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:24
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.504" (12.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Glow Wire Compliant
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:White
Current Rating (Amps):9A
Voltage Rating:600VAC
0 Remaining View Similar

In Stock

$2.65
31

Please send RFQ , we will respond immediately.
