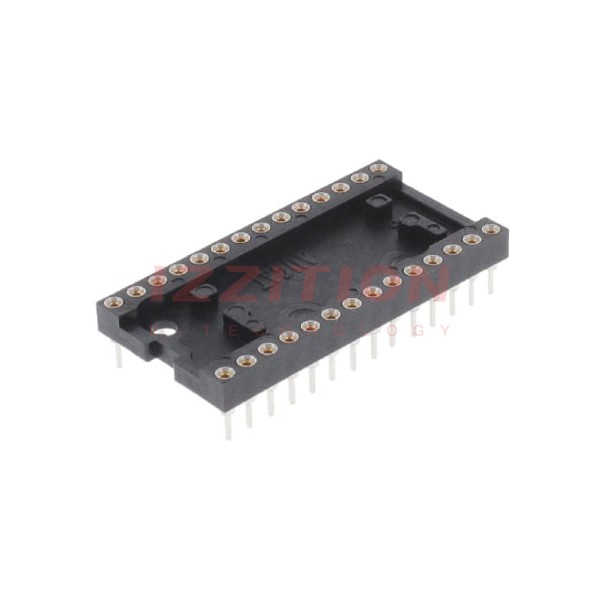

| Part Number | 2-1571551-9 | 2-1571550-9 | 2-1571551-2 | 2-1571551-6 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | DIP, 0.6" (15.24mm) Row Spacing | DIP, 0.6" (15.24mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 28 (2 x 14) | 28 (2 x 14) | 8 (2 x 4) | 20 (2 x 10) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | Flash | 25.0µin (0.63µm) | Flash | Flash |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper | Beryllium Copper | Copper Alloy |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Features | Closed Frame | Closed Frame | Closed Frame | Closed Frame |
| Termination | Solder | Solder | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Post | Flash | 25.0µin (0.63µm) | Flash | - |
| Contact Material - Post | Nickel | Beryllium Copper | Nickel | Copper Alloy |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Polyester |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
