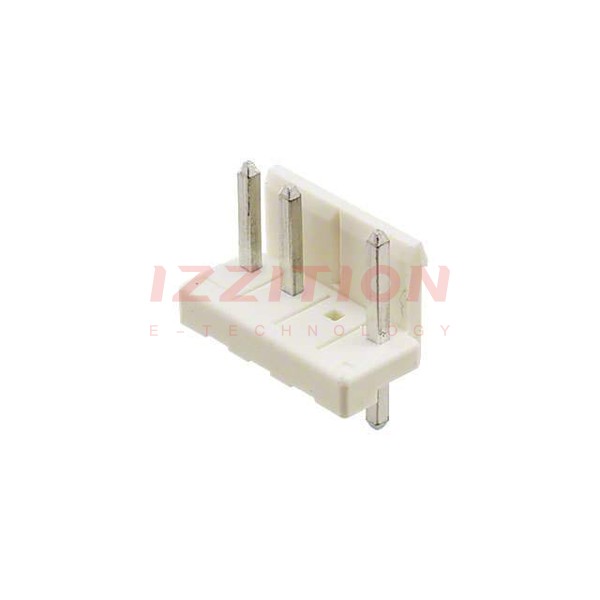

TE Connectivity AMP Connectors 2-1473059-3

Manufacturer No:
2-1473059-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-1473059-3 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 4POS 3.96MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:3
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.303" (7.70mm)
Contact Length - Post:0.146" (3.70mm)
Overall Contact Length:0.567" (14.40mm)
Insulation Height:0.118" (3.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:-
Operating Temperature:-25°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):7.5A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$0.37
710
