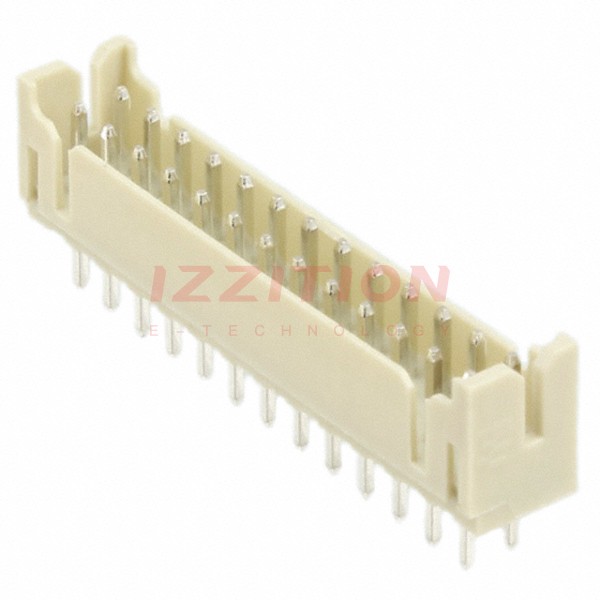

| Part Number | 2-1470109-6 | 2-1470108-6 | 2-1470109-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions | 26 | 26 | 22 |
| Number of Rows | 2 | 2 | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions Loaded | All | All | All |
| Style | Board to Board or Cable | Board to Cable/Wire | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole, Right Angle | Through Hole |
| Termination | Solder | Solder | Solder |
| Fastening Type | Detent Lock | - | Detent Lock |
| Contact Length - Mating | - | - | - |
| Contact Length - Post | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Overall Contact Length | - | - | - |
| Insulation Height | 0.256" (6.50mm) | 0.197" (5.00mm) | 0.256" (6.50mm) |
| Contact Shape | Square | Square | Square |
| Contact Finish - Mating | Tin | Gold | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | 30.0µin (0.76µm) | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Thermoplastic | Polyamide (PA66), Nylon 6/6 |
| Features | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Natural | Natural |
| Current Rating (Amps) | 3A | 3A | 3A |
| Voltage Rating | 100VDC | 100VDC | 100VDC |
