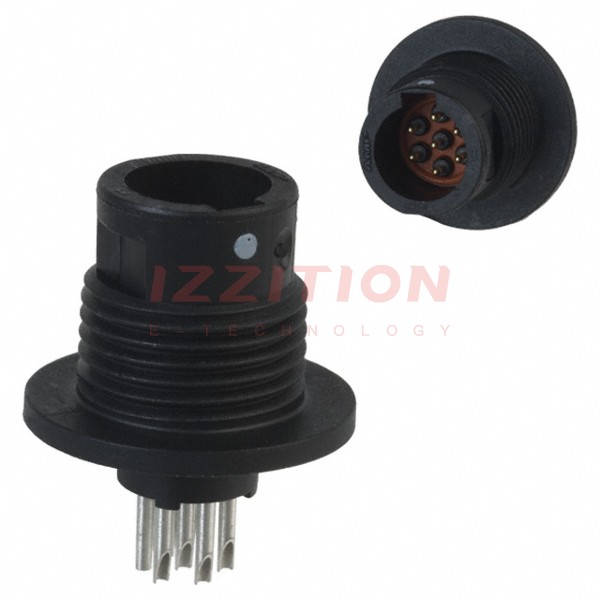

| Part Number | 2-1445718-0 | 2-1445719-0 | 2-1445758-0 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Male Pins |
| Number of Positions | 7 | 7 | 19 |
| Shell Size - Insert | M9.5 | M9.5 | M13.5 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | - | - | - |
| Termination | Solder Cup | Solder | Solder |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | Plastic | Plastic | Plastic |
| Shell Material | Thermoplastic | Thermoplastic | Thermoplastic |
| Shell Finish | - | - | - |
| Contact Finish - Mating | Gold | Gold | Gold |
| Color | - | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Material Flammability Rating | - | - | - |
| Features | Spring Probe | Spring Probe | Spring Probe |
| Shielding | - | - | - |
| Current Rating (Amps) | 2A | 2A | 2A |
| Voltage Rating | 250V | 250V | 250V |
| Cable Opening | - | - | - |
| Operating Temperature | 105°C Max | 105°C Max | 105°C Max |
