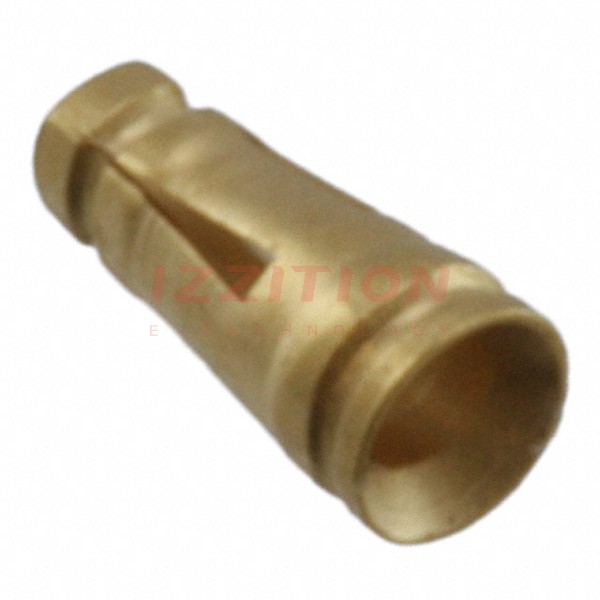

| Part Number | 2-1437506-0 | 2-1437506-4 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Tail Type | No Tail | No Tail |
| Termination | Press-Fit | Press-Fit |
| Length - Overall | 0.094" (2.39mm) | 0.136" (3.45mm) |
| Accepts Pin Diameter | 0.016" ~ 0.021" (0.41mm ~ 0.53mm) | 0.020" ~ 0.030" (0.51mm ~ 0.76mm) |
| Accepts Square Pin Size | 0.011" x 0.018" (0.28mm x 0.46mm) | - |
| Pin Hole Diameter | 0.026" (0.66mm) | 0.038" (0.97mm) |
| Mounting Hole Diameter | 0.041" (1.04mm) | 0.058" (1.47mm) |
| Flange Diameter | - | - |
| Tail Diameter | - | - |
| Socket Depth | - | - |
| Contact Material | Beryllium Copper | Beryllium Copper |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 24.8µin (0.63µm) | 24.8µin (0.63µm) |
