2-1318983-6
  • Share:

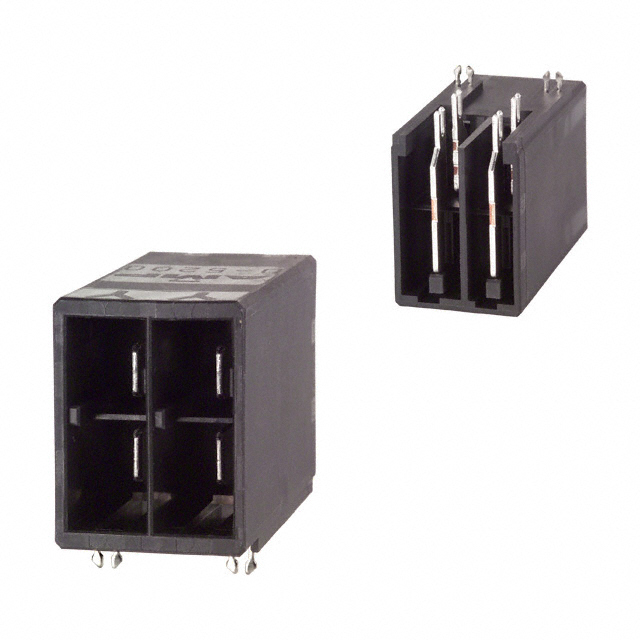

TE Connectivity AMP Connectors 2-1318983-6

Manufacturer No:
2-1318983-6
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
2-1318983-6 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 4POS 10.16MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.400" (10.16mm)
Number of Positions:4
Number of Rows:2
Row Spacing - Mating:0.400" (10.16mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:-
Insulation Height:1.215" (30.86mm)
Contact Shape:Rectangular
Contact Finish - Mating:Silver
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester, Glass Filled
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:IP20
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):45A
Voltage Rating:630V
0 Remaining View Similar

In Stock

$13.16
32

Please send RFQ , we will respond immediately.
