Please send RFQ , we will respond immediately.

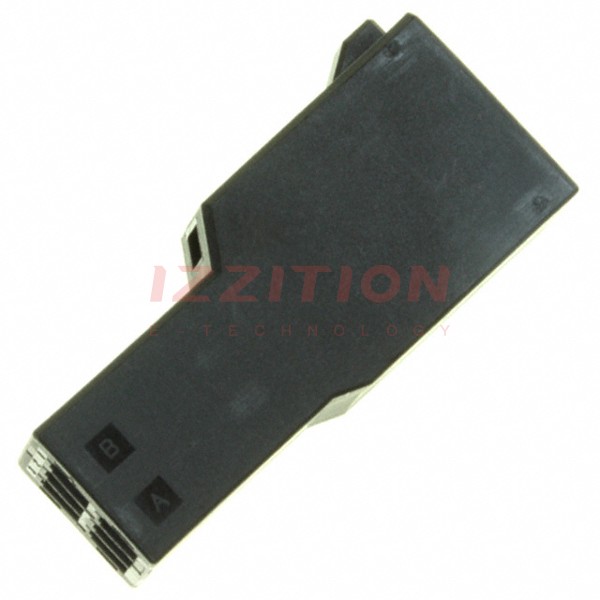

| Part Number | 2-1318115-3 | 2-1318117-3 | 2-1318119-3 | 2-1318115-4 | 2-1318116-3 | 2-1318115-6 | 2-1318115-9 | 2-1318114-3 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug | Plug | Receptacle | Plug | Plug | Plug | Plug | Plug |
| Contact Type | Male Pin | Male Pin | Female Socket | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Number of Positions | 6 | 3 | 6 | 8 | 3 | 12 | 20 | 6 |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Rows | 2 | 1 | 2 | 2 | 1 | 2 | 2 | 2 |
| Row Spacing | - | - | 0.148" (3.75mm) | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Locking Ramp | Locking Ramp | Latch Lock | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | - |
| Color | Black | Black | Black | Black | Black | Black | Black | Black |
| Features | Polarizing Key | Polarizing Key | - | Polarizing Key | Polarizing Key | Polarizing Key | Polarizing Key | Polarizing Key |
