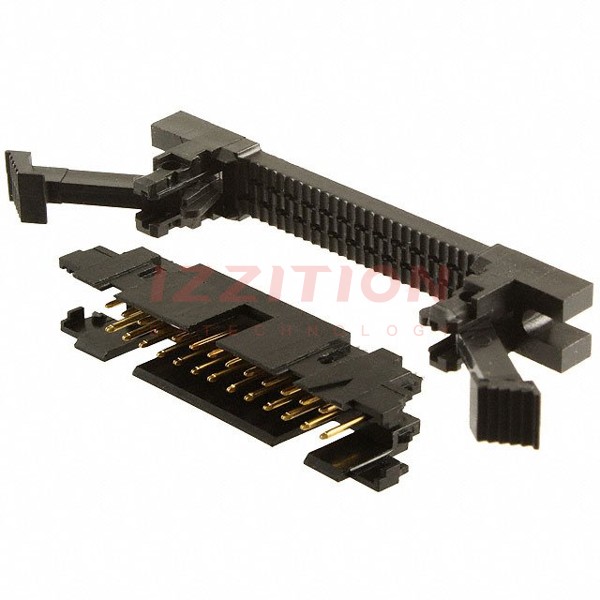

| Part Number | 2-111506-1 | 2-111506-4 | 2-111506-5 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Plug | Plug | Plug |
| Contact Type | Male Pin | Male Pin | Male Pin |
| Number of Positions | 26 | 40 | 44 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 2 |
| Row Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks |
| Cable Termination | IDC | IDC | IDC |
| Wire Type | Ribbon Cable | Ribbon Cable | Ribbon Cable |
| Wire Gauge | 26-28 AWG | 26-28 AWG | 26-28 AWG |
| Features | Feed Through, Strain Relief | Feed Through, Strain Relief | Feed Through, Strain Relief |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black |
