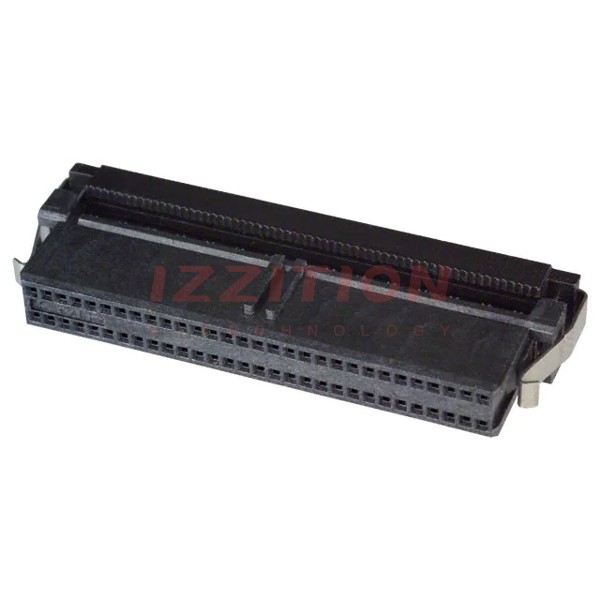

| Part Number | 2-111196-2 | 2-111196-4 | 2-111196-6 | 2-111196-8 | 2-111196-5 | 2-111196-9 | 2-111196-7 | 2-111196-0 | 2-111196-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 60 | 100 | 14 | 24 | 10 | 26 | 16 | 40 | 50 |
| Pitch | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable |
| Wire Gauge | 30-32 AWG | 30-32 AWG | 30-32 AWG | 30-32 AWG | 30-32 AWG | 30-32 AWG | 30-32 AWG | 30-32 AWG | 30-32 AWG |
| Features | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black | Black | Black | Black | Black | Black |
