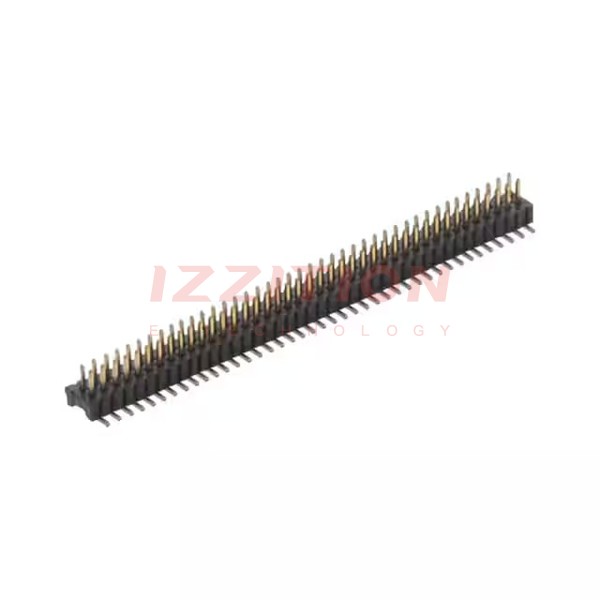

| Part Number | 1MM-HU-D41-VS-00-F-TBP | 1MM-HU-D42-VS-00-F-TBP | 1MM-HU-D43-VS-00-F-TBP | 1MM-HU-D44-VS-00-F-TBP | 1MM-HU-D45-VS-00-F-TBP | 1MM-HU-D46-VS-00-F-TBP | 1MM-HU-D47-VS-00-F-TBP | 1MM-HU-D48-VS-00-F-TBP | 1MM-HU-D41-VS-00-H-TBP | 1MM-HU-D49-VS-00-F-TBP | 1MM-HU-D11-VS-00-F-TBP | 1MM-HU-D21-VS-00-F-TBP | 1MM-HU-D31-VS-00-F-TBP | 1MM-HU-D40-VS-00-F-TBP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Number of Positions | 82 | 84 | 86 | 88 | 90 | 92 | 94 | 96 | 82 | 98 | 22 | 42 | 62 | 80 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All | All | All | All | All | All |
| Style | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board |
| Shrouding | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Length - Mating | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.083" (2.10mm) |
| Contact Length - Post | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Overall Contact Length | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Insulation Height | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
| Contact Shape | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 30.0µin (0.76µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Features | Pick and Place | Pick and Place | Pick and Place | Pick and Place | Pick and Place | Pick and Place | Pick and Place | Pick and Place | Pick and Place | Pick and Place | Pick and Place | Pick and Place | Pick and Place | Pick and Place |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| Current Rating (Amps) | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Voltage Rating | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC | 30VAC |
