Please send RFQ , we will respond immediately.

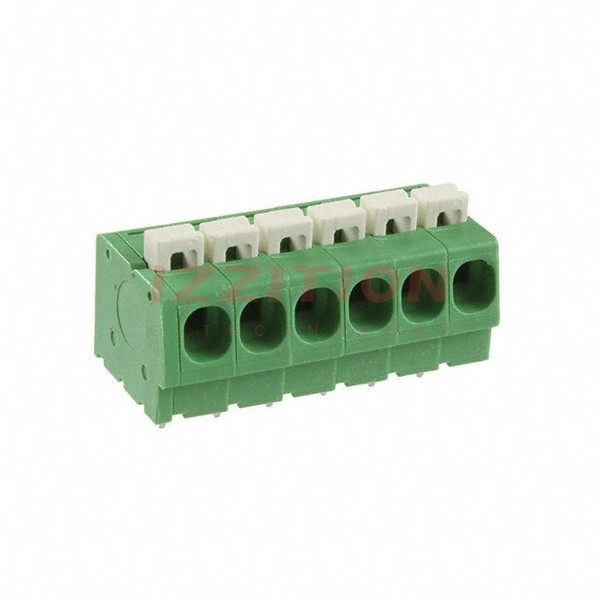

| Part Number | 1986775-6 | 1986775-8 | 1986715-6 | 1986775-3 | 1986775-4 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 6 | 8 | 6 | 3 | 4 |
| Pitch | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.591" (15.00mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Current | 15 A | 15 A | 130 A | 15 A | 15 A |
| Voltage | 300 V | 300 V | 600 V | 300 V | 300 V |
| Wire Gauge | 12 AWG | 12 AWG | 1-20 AWG | 12 AWG | 12 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screw | Screwless - Push Button Clamp | Screwless - Push Button Clamp |
| Features | - | - | Flange (Mounting) | - | - |
| Color | Green | Green | Green | Green | Green |
