Please send RFQ , we will respond immediately.

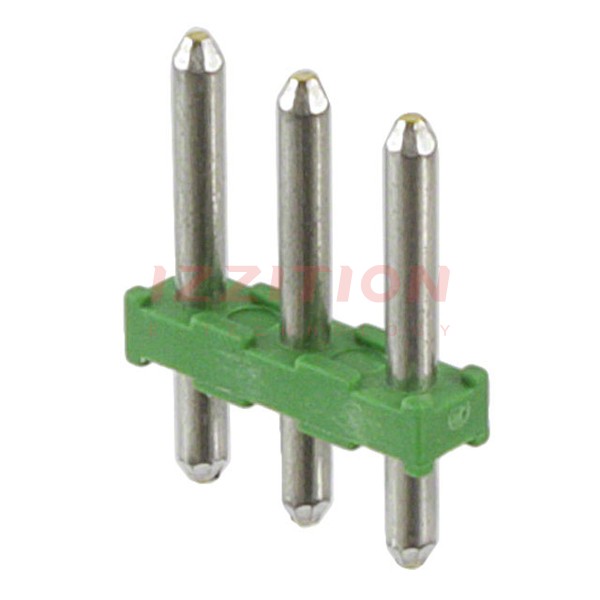

| Part Number | 1986717-3 | 1986717-4 | 1986717-8 | 1986717-6 | 1986718-3 | 1986717-5 | 1986717-7 | 1986716-3 | 1986717-2 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Plug for Unshrouded Header | Header, Male Pins, Unshrouded |
| Number of Positions | 3 | 4 | 8 | 6 | 3 | 5 | 7 | 3 | 2 |
| Positions Per Level | 3 | 4 | 8 | 6 | 3 | 5 | 7 | 3 | 2 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Header Orientation | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | - | Vertical |
| Plug Wire Entry | - | - | - | - | - | - | - | 90° | - |
| Termination Style | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Screwless - Leg Spring, Push-In Spring | Solder |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Free Hanging (In-Line) | Through Hole |
| Current - IEC | - | - | - | - | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - | - | - | - | - |
| Current - UL | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A |
| Voltage - UL | 150 V | 150 V | 150 V | 150 V | 150 V | 150 V | 150 V | 150 V | 150 V |
| Wire Gauge or Range - AWG | - | - | - | - | - | - | - | 16-20 AWG | - |
| Wire Gauge or Range - mm² | - | - | - | - | - | - | - | 0.5-1.3mm² | - |
| Color | Green | Green | Green | Green | Green | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Features | - | - | - | - | - | - | - | Push Button Actuated, Side Stacking | - |
