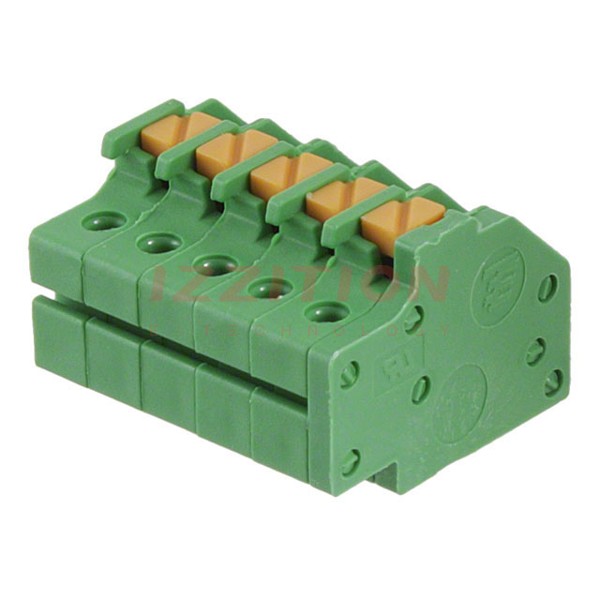

| Part Number | 1986716-5 | 1986716-8 | 1986717-5 | 1986718-5 | 1986716-6 | 1986716-7 | 1986726-5 | 1986716-2 | 1986716-3 | 1986716-4 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Type | Plug for Unshrouded Header | Plug for Unshrouded Header | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Plug for Unshrouded Header | Plug for Unshrouded Header | Plug, Female Sockets | Plug for Unshrouded Header | Plug for Unshrouded Header | Plug for Unshrouded Header |
| Number of Positions | 5 | 8 | 5 | 5 | 6 | 7 | 5 | 2 | 3 | 4 |
| Positions Per Level | 5 | 8 | 5 | 5 | 6 | 7 | 5 | 2 | 3 | 4 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.150" (3.81mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Header Orientation | - | - | Vertical | Vertical | - | - | - | - | - | - |
| Plug Wire Entry | 90° | 90° | - | - | 90° | 90° | 180° | 90° | 90° | 90° |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Solder | Solder | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - | - | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - | - | - | - | - | - |
| Current - UL | 2 A | 2 A | 2 A | 2 A | 2 A | 2 A | 9 A | 2 A | 2 A | 2 A |
| Voltage - UL | 150 V | 150 V | 150 V | 150 V | 150 V | 150 V | 300 V | 150 V | 150 V | 150 V |
| Wire Gauge or Range - AWG | 16-20 AWG | 16-20 AWG | - | - | 16-20 AWG | 16-20 AWG | 14-30 AWG | 16-20 AWG | 16-20 AWG | 16-20 AWG |
| Wire Gauge or Range - mm² | 0.5-1.3mm² | 0.5-1.3mm² | - | - | 0.5-1.3mm² | 0.5-1.3mm² | 0.05-2mm² | 0.5-1.3mm² | 0.5-1.3mm² | 0.5-1.3mm² |
| Color | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Features | Push Button Actuated, Side Stacking | Push Button Actuated, Side Stacking | - | - | Push Button Actuated, Side Stacking | Push Button Actuated, Side Stacking | Mating Flange | Push Button Actuated, Side Stacking | Push Button Actuated, Side Stacking | Push Button Actuated, Side Stacking |
