Please send RFQ , we will respond immediately.

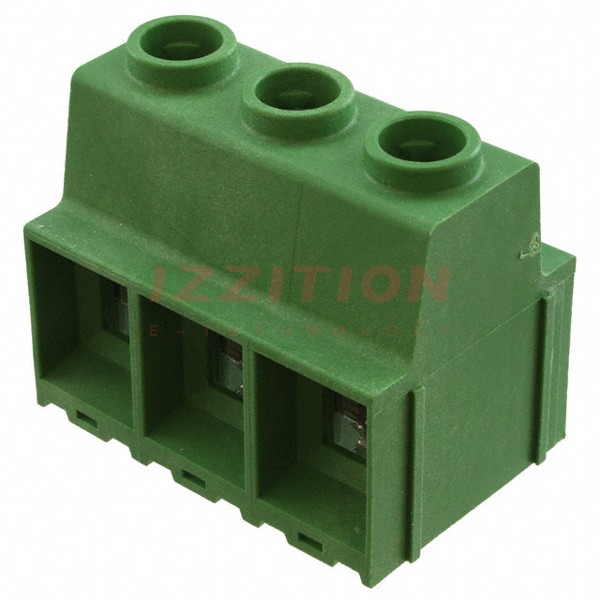

| Part Number | 1986713-3 | 1986715-3 | 1986713-4 | 1986713-6 | 1986713-7 | 1986714-3 | 1986713-5 | 1986713-8 | 1986713-9 | 1986711-3 | 1986712-3 | 1986713-2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 3 | 3 | 4 | 6 | 7 | 3 | 5 | 8 | 9 | 3 | 3 | 2 |
| Pitch | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.197" (5.00mm) | 0.200" (5.08mm) | 0.591" (15.00mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Current | 130 A | 130 A | 130 A | 130 A | 130 A | 130 A | 130 A | 130 A | 130 A | 16 A | 16 A | 130 A |
| Voltage | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 300 V | 300 V | 600 V |
| Wire Gauge | 1-20 AWG | 1-20 AWG | 1-20 AWG | 1-20 AWG | 1-20 AWG | 1-20 AWG | 1-20 AWG | 1-20 AWG | 1-20 AWG | 12-30 AWG | 12-30 AWG | 1-20 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screw |
| Features | Interlocking (Side) | Flange (Mounting) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Board Guide, Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) |
| Color | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green |
