Please send RFQ , we will respond immediately.

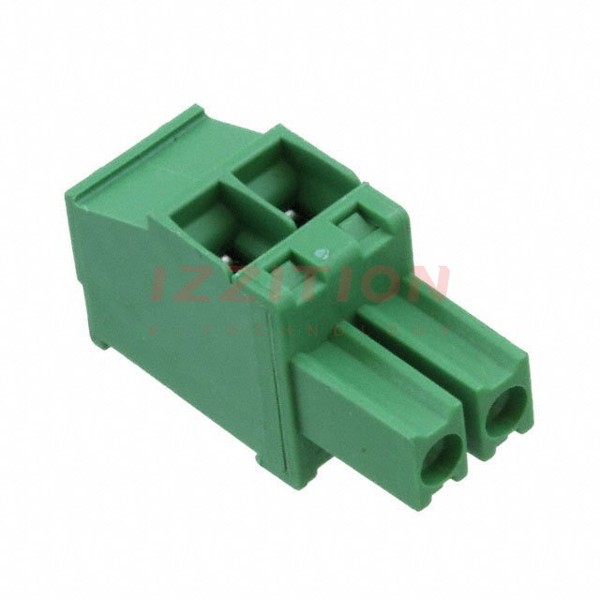

| Part Number | 1986371-2 | 1986371-3 | 1986375-2 | 1986371-4 | 1986371-5 | 1986371-6 | 1986371-7 | 1986371-8 | 1986371-9 | 1986374-2 | 1986370-2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active |
| Type | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 2 | 3 | 2 | 4 | 5 | 6 | 7 | 8 | 9 | 2 | 2 |
| Positions Per Level | 2 | 3 | 2 | 4 | 5 | 6 | 7 | 8 | 9 | 2 | 2 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.150" (3.81mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.150" (3.81mm) | 0.138" (3.50mm) |
| Header Orientation | - | - | - | - | - | - | - | - | - | - | - |
| Plug Wire Entry | 270° | 270° | 270° | 270° | 270° | 270° | 270° | 270° | 270° | 90° | 90° |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - | - | - | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - | - | - | - | - | - | - |
| Current - UL | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | 14-30 AWG | 14-30 AWG | 14-30 AWG | 14-30 AWG | 14-30 AWG | 14-30 AWG | 14-30 AWG | 14-30 AWG | 14-30 AWG | 14-30 AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² | 0.05-2mm² | 0.05-2mm² | 0.05-2mm² | 0.05-2mm² | 0.05-2mm² | 0.05-2mm² | 0.05-2mm² | 0.05-2mm² | 0.05-2mm² | 0.05-2mm² |
| Color | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Features | Side Stacking | Side Stacking | Side Stacking | Side Stacking | Side Stacking | Side Stacking | Side Stacking | Side Stacking | Side Stacking | Side Stacking | Side Stacking |
