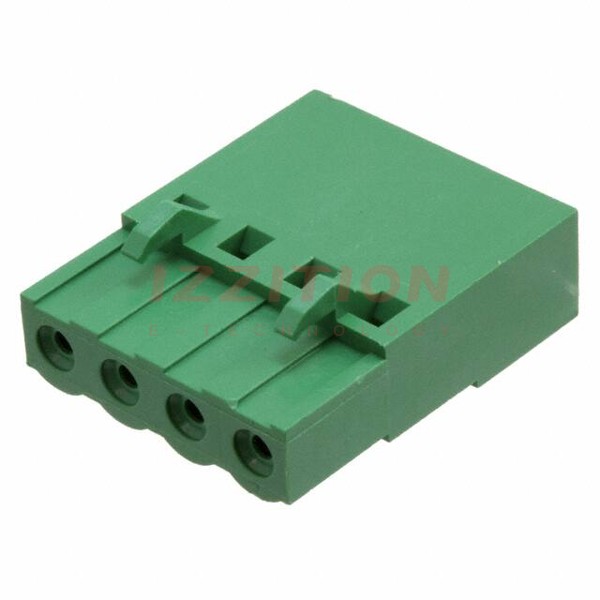

| Part Number | 1986160-4 | 1986160-6 | 1986160-5 | 1986160-2 | 1986160-3 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Type | Plug Housing for Female Sockets | Plug Housing for Female Sockets | Plug Housing for Female Sockets | Plug Housing for Female Sockets | Plug Housing for Female Sockets |
| Number of Positions | 4 | 6 | 5 | 2 | 3 |
| Positions Per Level | 4 | 6 | 5 | 2 | 3 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Header Orientation | - | - | - | - | - |
| Plug Wire Entry | 180° | 180° | 180° | 180° | 180° |
| Termination Style | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - |
| Current - UL | - | - | - | - | - |
| Voltage - UL | - | - | - | - | - |
| Wire Gauge or Range - AWG | - | - | - | - | - |
| Wire Gauge or Range - mm² | - | - | - | - | - |
| Color | Green | Green | Green | Green | Green |
| Operating Temperature | - | - | - | - | - |
| Contact Mating Finish | - | - | - | - | - |
| Features | Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) |
