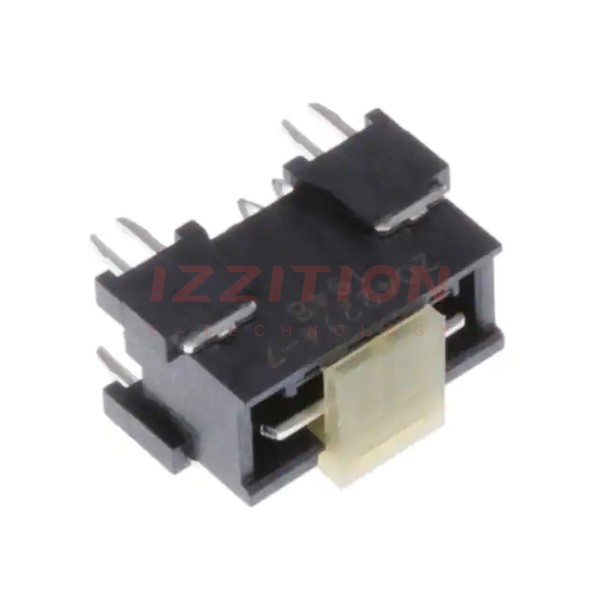

| Part Number | 1982295-6 | 1982295-1 | 1982295-2 | 1982295-5 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | - | - | - | - |
| Connector Type | Header, Male Blades | Header, Male Blades | Header, Male Blades | Header, Male Blades |
| Connector Style | - | - | - | - |
| Number of Positions | 2 | 2 | 2 | 2 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | - | 0.307" (7.80mm) | 0.307" (7.80mm) | 0.307" (7.80mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Number of Columns | - | - | - | - |
| Mounting Type | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder |
| Contact Layout, Typical | 2 Power | 2 Power | 2 Power | 2 Power |
| Features | Board Lock | Board Lock | Board Lock | Board Lock |
| Contact Finish | Silver | Gold | Gold | Gold |
| Contact Finish Thickness | Flash | Flash | Flash | 118.1µin (3.00µm) |
| Color | Black | Black | Black | Black |
