1982101-1
  • Share:

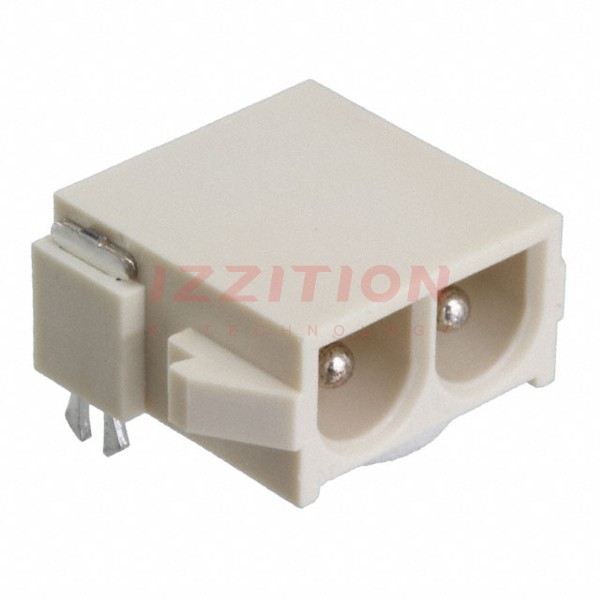

TE Connectivity AMP Connectors 1982101-1

Manufacturer No:
1982101-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1982101-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 2POS 6.35MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.250" (6.35mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.343" (8.70mm)
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:0.311" (7.90mm)
Contact Shape:Circular
Contact Finish - Mating:Silver
Contact Finish Thickness - Mating:196.9µin (5.00µm)
Contact Finish - Post:-
Contact Material:Copper
Insulation Material:Polyamide (PA46), Nylon 4/6, Glass Filled
Features:Board Lock
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
540

Please send RFQ , we will respond immediately.
