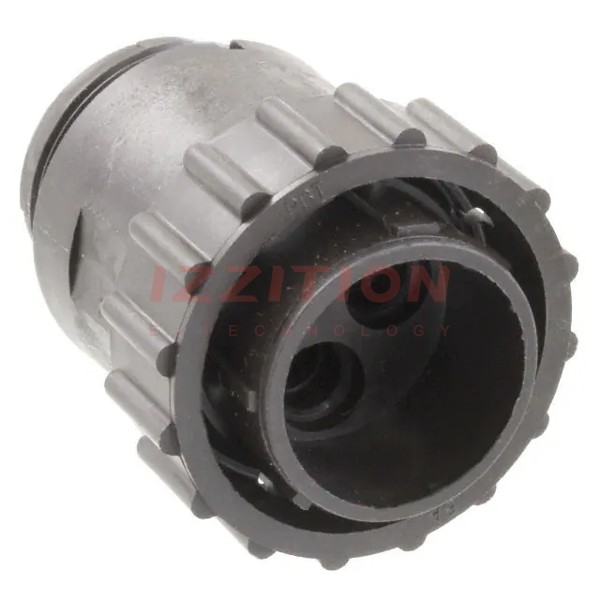

| Part Number | 1977889-1 | 1977879-1 | 1977880-1 | 1977881-1 | 1977882-1 | 1977883-1 | 1977884-1 | 1977885-1 | 1977886-1 | 1977887-1 | 1977888-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug Housing | Receptacle Housing | Receptacle Housing | Plug Housing | Receptacle Housing | Receptacle Housing | Plug Housing | Receptacle Housing | Receptacle Housing | Plug Housing | Receptacle Housing |
| Type | For Male Pins | For Female Sockets | For Female Sockets | For Male Pins | For Male Pins | For Male Pins | For Female Sockets | For Male Pins | For Male Pins | For Female Sockets | For Female Sockets |
| Number of Positions | 3 (Power) | 4 | 4 | 4 | 9 | 9 | 9 | 37 | 37 | 37 | 3 (Power) |
| Shell Size - Insert | 17-3 | 11-4 | 11-4 | 11-4 | 13-9 | 13-9 | 13-9 | 23-37 | 23-37 | 23-37 | 17-3 |
| Shell Size, MIL | - | - | - | - | - | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | 8 Power | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 8 Power |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | - | Flange | - | - | Flange | - | - | Flange | - | - | Flange |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | - | - | - | - | - | - | - |
| Shell Material | Polyamide (PA), Nylon | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Shell Finish | - | - | - | - | - | - | - | - | - | - | - |
| Housing Color | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| Ingress Protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Coupling Nut | Backshell | Backshell | Backshell, Coupling Nut | - | - | Coupling Nut | Backshell | Backshell | Backshell, Coupling Nut | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
