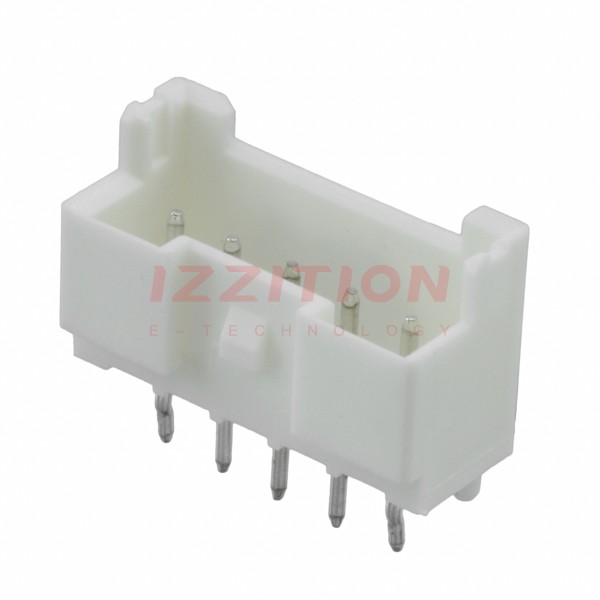

| Part Number | 1969729-5 | 1969729-6 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Positions | 5 | 6 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole |
| Termination | Kinked Pin, Solder | Kinked Pin, Solder |
| Fastening Type | Friction Lock | Friction Lock |
| Contact Length - Mating | 0.141" (3.60mm) | 0.141" (3.60mm) |
| Contact Length - Post | 0.134" (3.40mm) | 0.134" (3.40mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.346" (8.80mm) | 0.346" (8.80mm) |
| Contact Shape | Circular | Circular |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | - | - |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Thermoplastic | Thermoplastic |
| Features | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Natural |
| Current Rating (Amps) | 4.2A | 4.2A |
| Voltage Rating | 250VAC | 250VAC |
