1969570-8
  • Share:

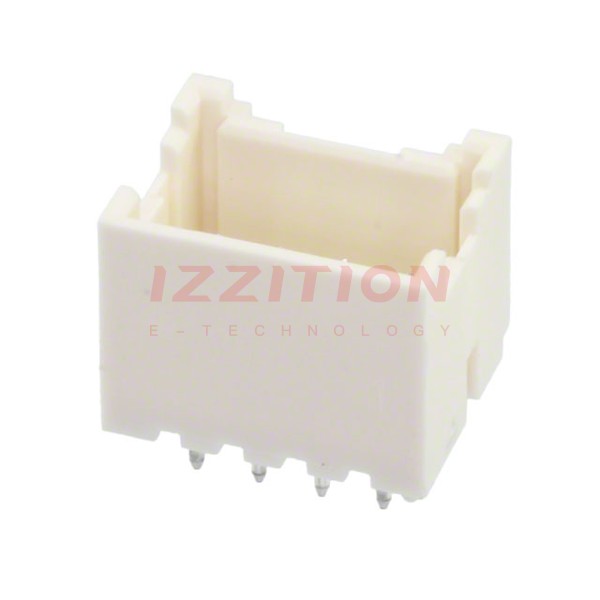

TE Connectivity AMP Connectors 1969570-8

Manufacturer No:
1969570-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1969570-8 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 8POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.098" (2.50mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Friction Lock
Contact Length - Mating:-
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:-
Insulation Height:0.386" (9.80mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide, Glow Wire Compliant
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):4.2A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$0.46
1,085

Please send RFQ , we will respond immediately.
