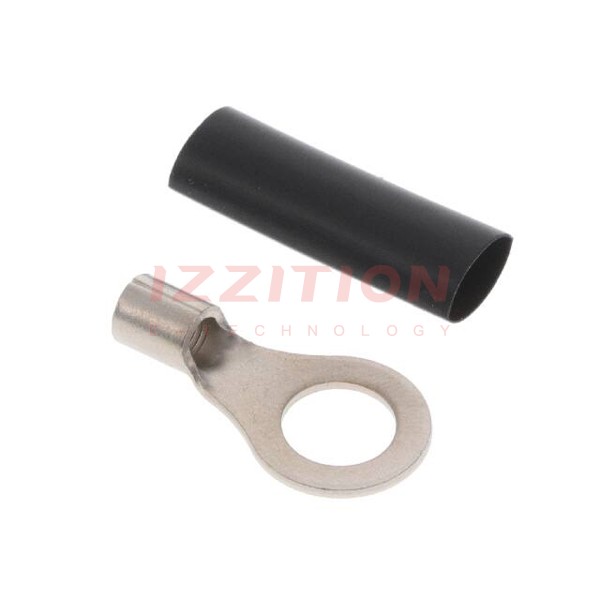

| Part Number | 1958126-1 | 1958124-1 | 1958125-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 5/16 Stud | 1/4 Stud | 10 Stud |
| Thickness | 0.039" (0.99mm) | 0.031" (0.79mm) | 0.039" (0.99mm) |
| Width - Outer Edges | 0.531" (13.49mm) | 0.469" (11.91mm) | 0.375" (9.53mm) |
| Length - Overall | 1.004" (25.50mm) | 0.856" (21.74mm) | 0.765" (19.43mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 16-22 AWG | 10-12 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | Brazed Seam, Serrated Termination, With Heat Shrink Tubing | Brazed Seam, Serrated Termination, With Heat Shrink Tubing | Brazed Seam, Serrated Termination, With Heat Shrink Tubing |
| Color | - | - | - |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Nickel | - | Nickel |
