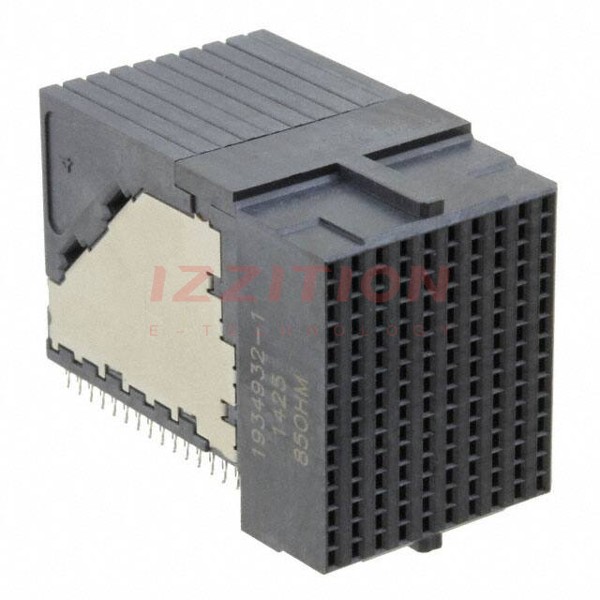

| Part Number | 1934932-1 | 1934937-1 | 1934332-1 | 1934912-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | - | - | - | - |
| Connector Type | Receptacle, Female Sockets | - | Header, Male Pins | Receptacle, Female Sockets |
| Connector Style | - | - | High Speed | High Speed |
| Number of Positions | 150 | - | 240 | 288 |
| Number of Positions Loaded | All | - | All | All |
| Pitch | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) |
| Number of Rows | 15 | - | 15 | 18 |
| Number of Columns | 10 | - | 16 | 16 |
| Mounting Type | Through Hole, Right Angle | - | Through Hole | Through Hole, Right Angle |
| Termination | Press-Fit | - | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - |
| Features | - | - | - | - |
| Contact Finish | Gold | - | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | - | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | - | Black | Black |
