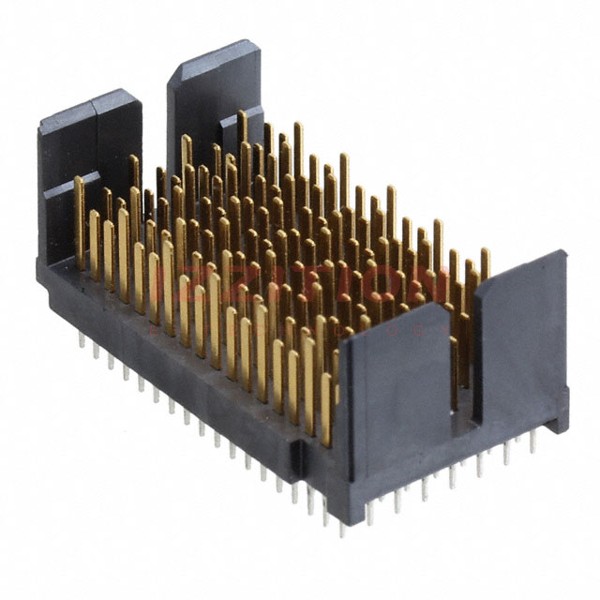

| Part Number | 1934505-1 | 1934515-1 | 1934305-1 | 1934504-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | - | - | Backplane | - |
| Connector Type | Header, Male Pins | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets |
| Connector Style | High Speed | High Speed | High Speed | High Speed |
| Number of Positions | 144 | 144 | 96 | 144 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) |
| Number of Rows | 18 | 18 | 12 | 18 |
| Number of Columns | 8 | 8 | 8 | 8 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - |
| Features | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 20.0µin (0.51µm) |
| Color | Black | Black | Black | Black |
